Turret UnwinD Rewind

Web Path illustration of turret unwind and rewind with servo motor web control precision for flying splice accuracy

  • Rewind lay-on roll maintains direct horizontal contact with roll build up

  • Motors dedicated to each shaft (dual design)

  • Servo Driven lay-on roll to feed rewind

  • Sensitive pneumatic dancer system to maintain web tension into and out of the press

  • Highly accurate tension control for strait rolls with controlled tension during roll build up

  • The linear movement of the cutting unit minimizes roll travel as well as tension upsets and web shifting typically associated with many turret designs

  • Servo-motorized pressure roller synchronous with the web speed from main PLC master/slave control

  • Automatic positioning system of reels, servo-motorized with encoder for automatic change of reel

  • Asynchronous servo motors for the control of the unwinding and rewinding tension

  • Specify footage input from the PLC accurately produces the correct roll lengths at splice

  • Capable of holding two full width reels at the same time

32” Turret Unwind Rewind

32” Unwind and rewind turret can be added inline to your new or existing flexo or gravure equipment.

40” Turret Unwind Rewind

40” heavy duty Unwind and rewind turret supporting 1000 kg lift can be added inline to your new or existing flexo or gravure equipment.

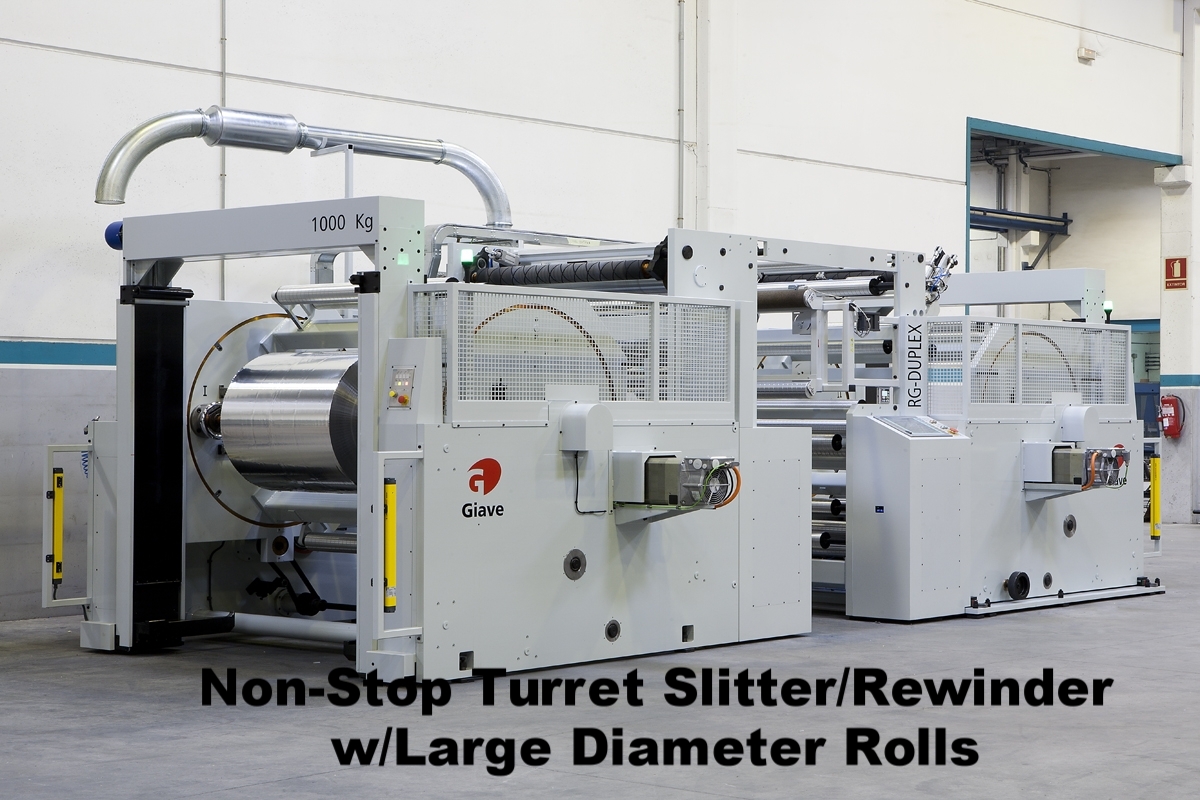

RG Duplex.jpg

50” Flying Splice Turret Unwind Rewind

50” Flying splice turret with 1500 kg lift can be installed and integrated inline to your existing flexo or gravure press equipment for greater efficiency in productivity

Dedicated (dual) servo motors for both turrets and robust metal framing for continuous print jobs can make your existing equipment more efficient

63” Flying Splice Turret Unwind Rewind

63” Flying splice turret with lift can be installed and integrated inline to your existing flexo or gravure press equipment for greater efficiency in productivity for long and short runs
